615

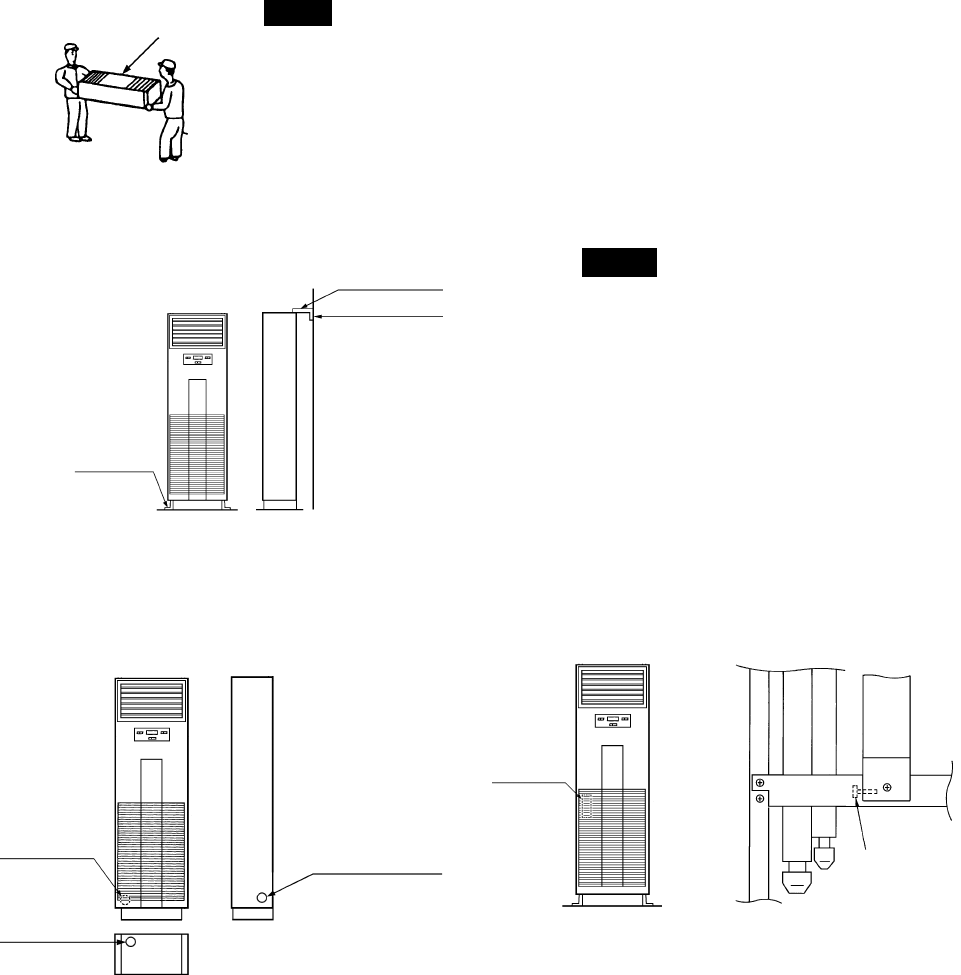

(2) Transporting and installing the unit

(a) Transporting

Front surface facing

upward

Request

¡ When transporting the unit to the final mounting location, keep it in its original packing as long

as feasible.

¡ When the situation demands that the unit be unpacked for transportation, wrap using nylon

sling and take care to ensure that the unit is not damaged.

Note (1) Do not hold the unit by the air inlet grill, by the air outlet grill, or by any other plastic

parts.

¡ When placing the unit down after packaging has been removed, please ensure that it is always

positioned with the front surface facing upward.

(b) Topple prevention overview

Request

¡ Mount the unit on a level surface; forward,

backward, left, or right inclinations must not

exceed 1˚.

(3) Refrigerant piping Please refer to the outdoor unit’s instruction manual with regard to the installation of refrigerant piping.

The unit will topple over quite

easily; it must be secured in place

as illustrated.

Tapping screws

Topple preventer

(Secured with

round wood screws)

L-angle

(a) Piping and wiring outlets (b) Control box position and power cord path

Control box

¡ The power line must

pass through the clamp

and be secured by the

clamp.

For rear pull-out

(1 location)

(

88 knock-

out hole)

For bottom

pull-out (

88)

For side pull-out

(left and right)

(

88 knock-out hole)

Control

box

Clamp

¡ Remove the suction grill to

find the control box in the

position indicated in the

diagram above. Remove the

cover to perform the neces-

sary work.

1 2 ... 10 11 12 13 14 15 16
